Fabricated components from drawings
Zeus can quote workshop-fabricated tubular and pipework-style components where the drawing defines the geometry, connections, material and finish required. Genuine project photography includes polished tubular assemblies, fabricated bends, flanged details and connected process-style work.
This page is deliberately about fabricated components and assemblies rather than making a blanket claim for process-pipework design or site installation. If a project carries a particular engineering code, pressure requirement, hygienic requirement, inspection regime or welder qualification requirement, state it before quotation so Zeus can confirm whether the work is suitable.
Stainless pipework-style fabrication
Stainless is Zeus’s strongest specialist material and TIG welding is a flagship capability. Where a tubular or pipework component is specified in stainless, include the grade, wall or material thickness, connection details, weld specification and finish. Polished or appearance-critical work should also identify which surfaces remain visible.
Do not rely on nominal diameter alone for a bespoke component. Connection standards, flange details, centreline dimensions, branch positions and mating interfaces should be shown on the drawing where they matter.
Typical information needed to quote
- Complete drawing or CAD file
- Material and grade where specified
- Tube, pipe or fabricated section dimensions and thickness
- Flange, boss, branch or mating-interface details
- Required bend geometry or fabricated angle
- Weld specification where applicable
- Surface finish for visible stainless work
- Quantity, required date and delivery postcode
If the component is part of a larger machine or process assembly, include enough of that surrounding drawing to make the interfaces unambiguous.
Finishing as part of the fabrication

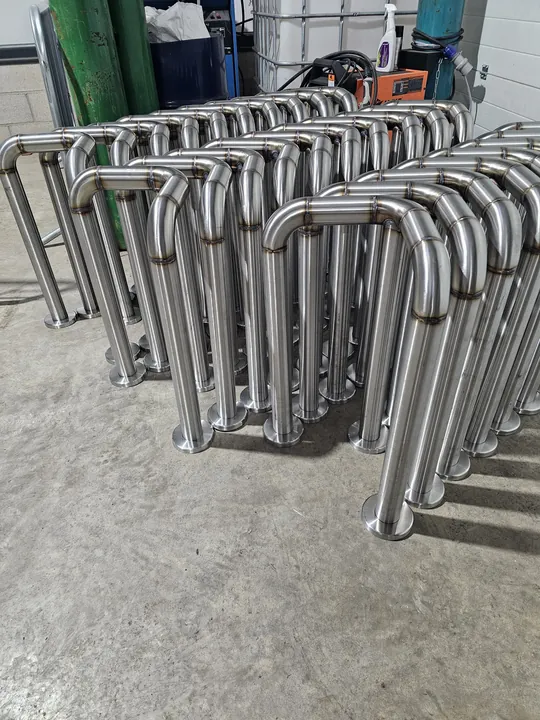

The genuine Zeus archive includes highly polished tubular work. Where finish matters, stainless polishing and finishing should be specified with the fabrication so weld dressing, grain direction, handling and visible faces can be planned together.
Genuine Zeus fabrication

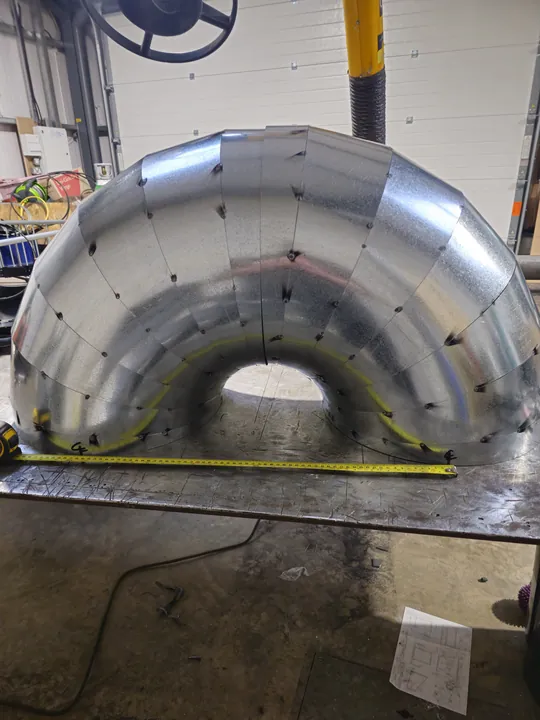

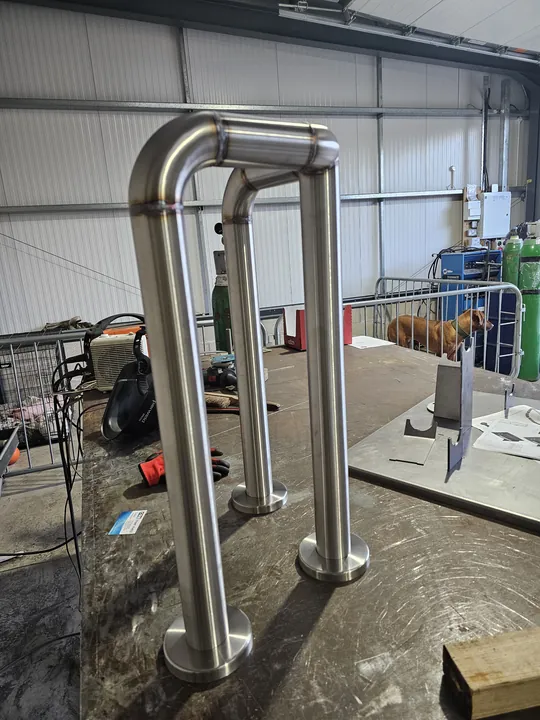

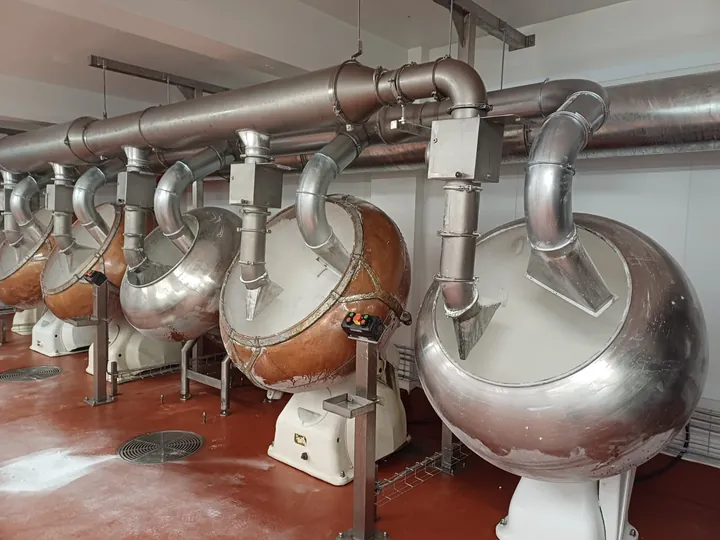

These genuine Zeus photographs show polished tubular fabrications, flanged components, a large segmented bend and installed fabricated pipework-style work. They support workshop fabrication capability without inventing pressure ratings, codes or site-installation scope.
Real project evidence: See polished tubular, flanged and segmented fabricated details. These project pages describe only what the photographs and established Zeus information support.
Frequently asked questions
What pipework information should be included for a quote?
Send the full drawing with material, dimensions, wall or section thickness, connection details, flange or branch information, quantity, weld specification where applicable, finish, required date and delivery postcode.
Does this page mean Zeus is automatically certified for pressure or hygienic pipework?
No. Any pressure rating, hygienic standard, coded-welding requirement, inspection regime or other specific standard must be stated before quotation so Zeus can confirm suitability for that requirement.
Can polished stainless tubular work be quoted with fabrication and TIG welding?
Yes, where suitable. State the required stainless grade and finish and identify visible faces so fabrication, TIG welding and finishing can be reviewed together.
Send the requirement for a quote
Send the drawing or CAD file if available, principal dimensions, material and grade if specified, thickness, quantity, finish, required date and delivery postcode. If you do not yet have a drawing, send clear photographs or a sketch and explain the interfaces the fabrication must fit.
Zeus is based in Burnley and quotes suitable work across Lancashire, Blackburn, Manchester, Greater Manchester, the wider North West and further afield. Those named places are examples of coverage, not service boundaries.
Request a fabrication quote
