Genuine Zeus Sheet Metal Fabrication
Every fabrication photograph here is genuine Zeus work. Browse stainless finishing, formed components, hoppers, tubular work, cylindrical sections and larger assemblies photographed in the workshop.
Real jobs, grouped so buyers can inspect the work.
Where photographs clearly belong together they are presented as a sequence. Exact specifications are not guessed when the original job data is not available.

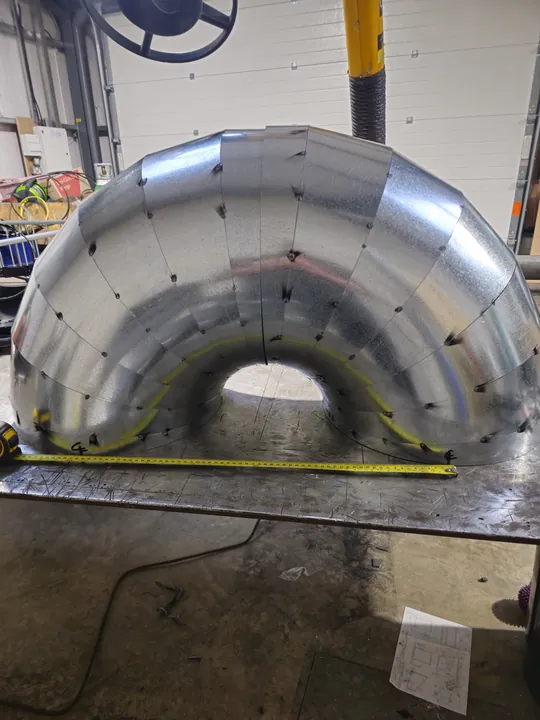

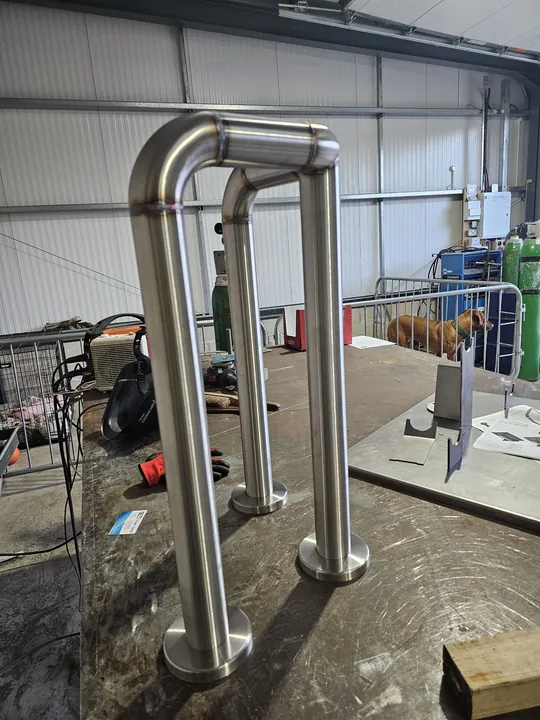

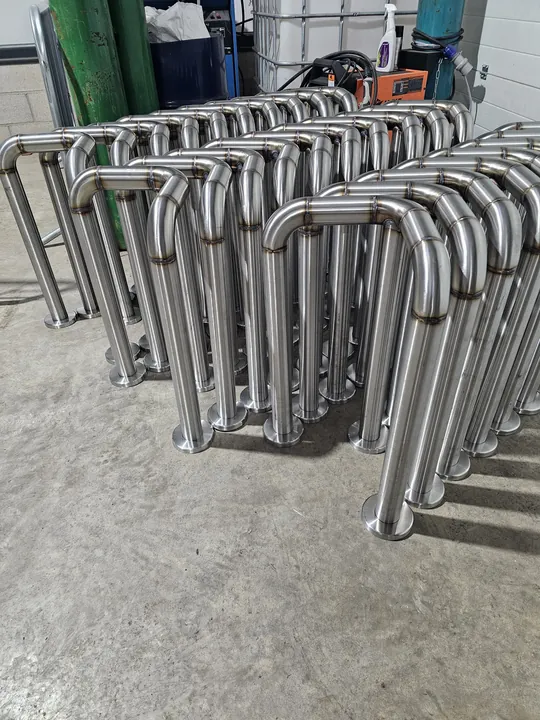

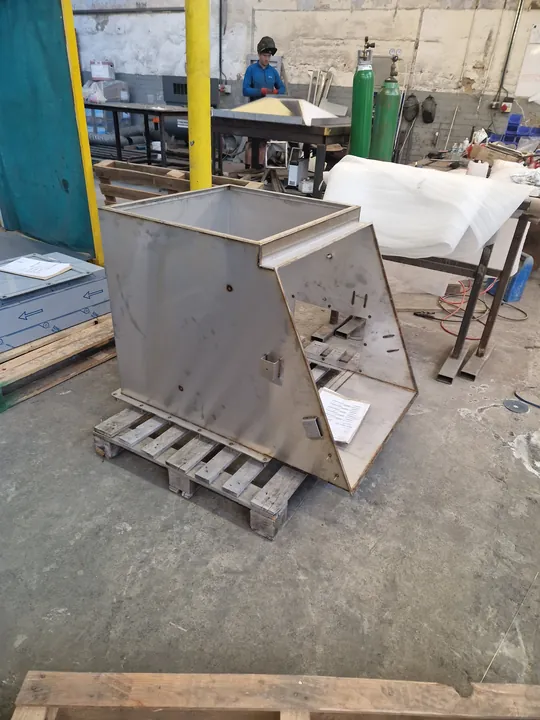

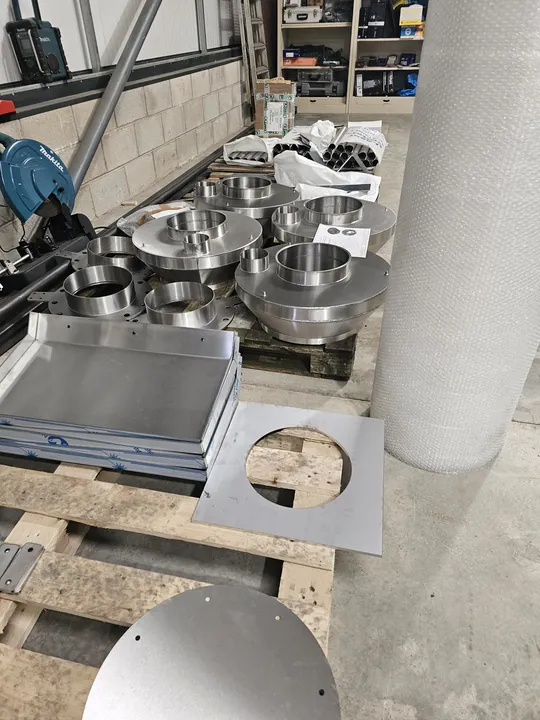

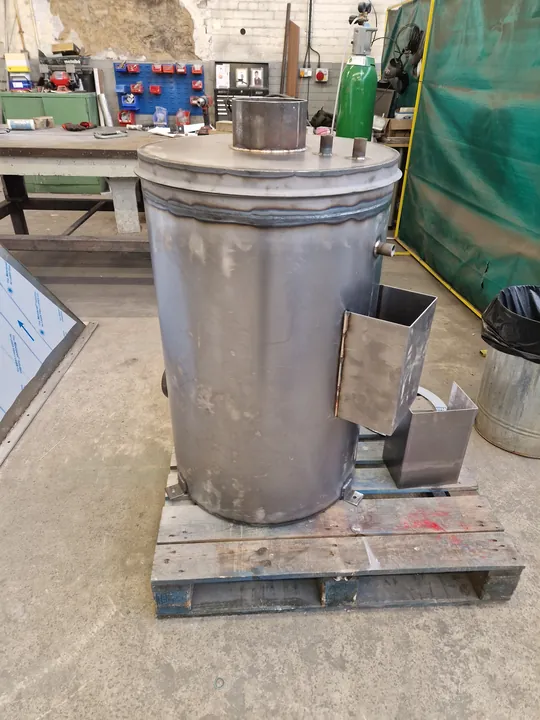

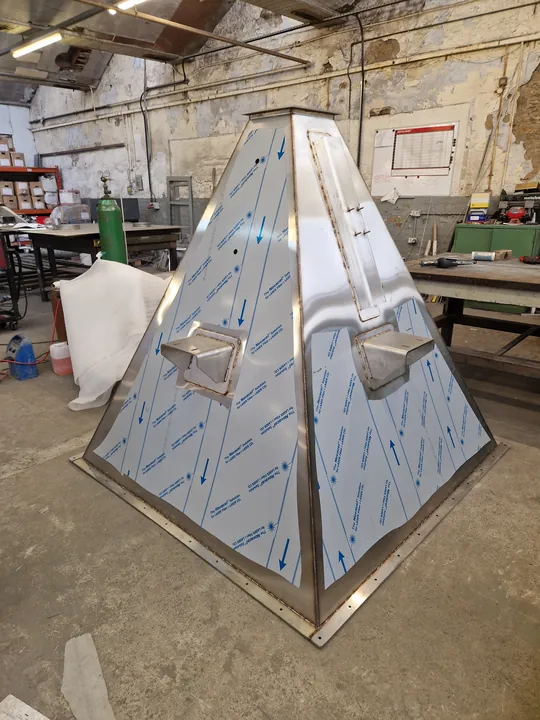

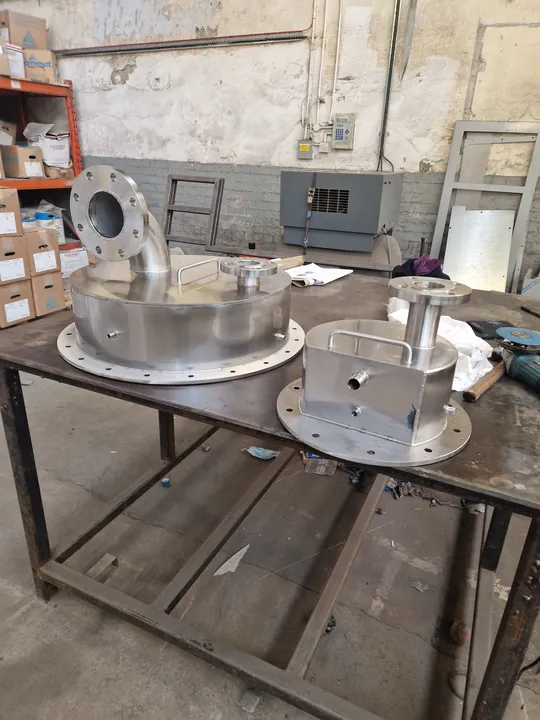

Hoppers, Pipework & Fabricated Details
Hopper-style fabrications, polished tubular work, flanged details and a segmented fabricated bend.

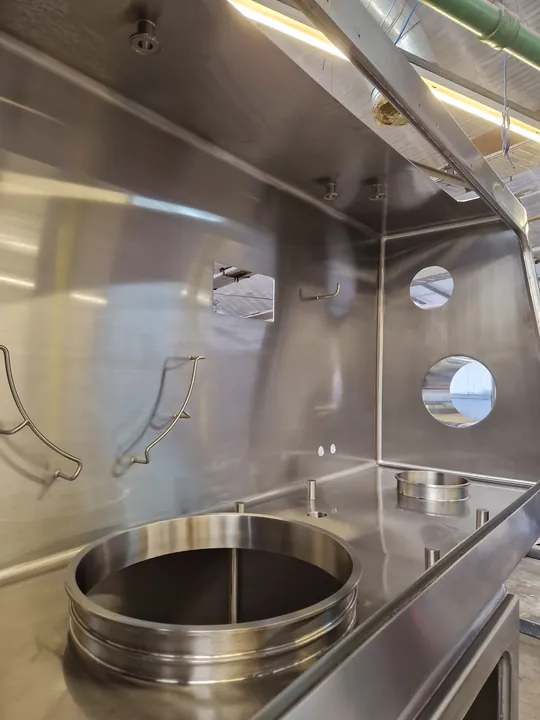

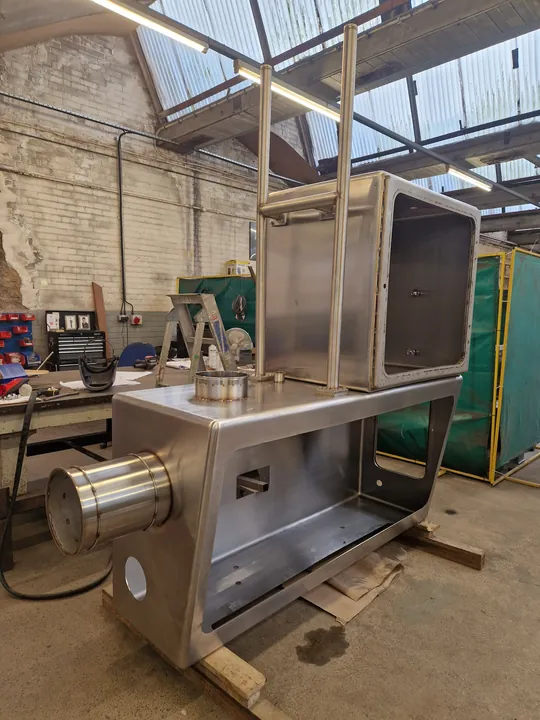

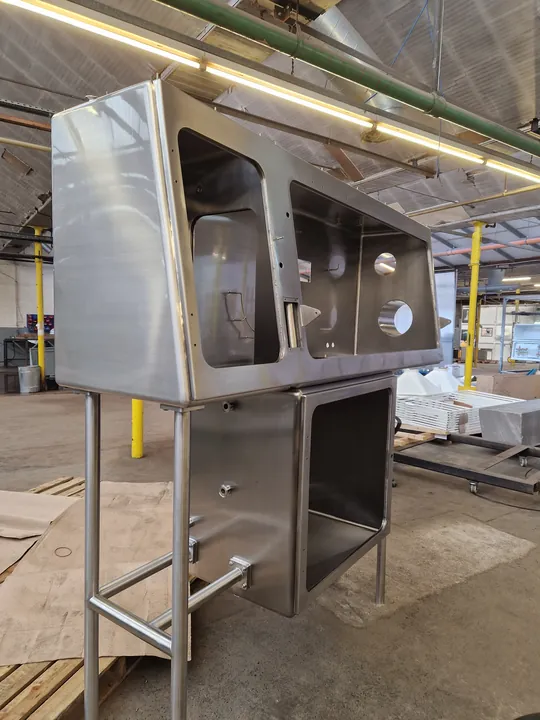

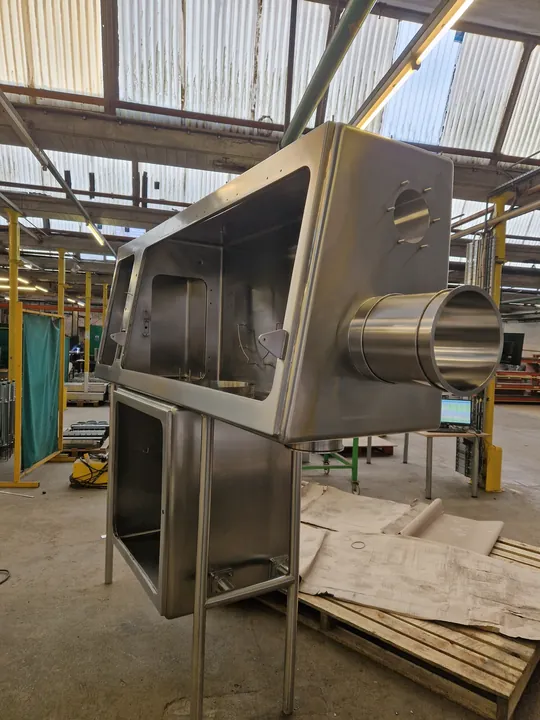

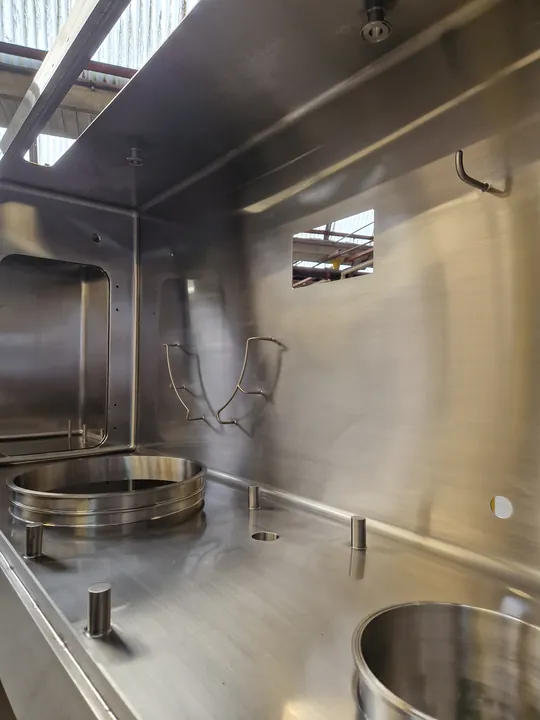

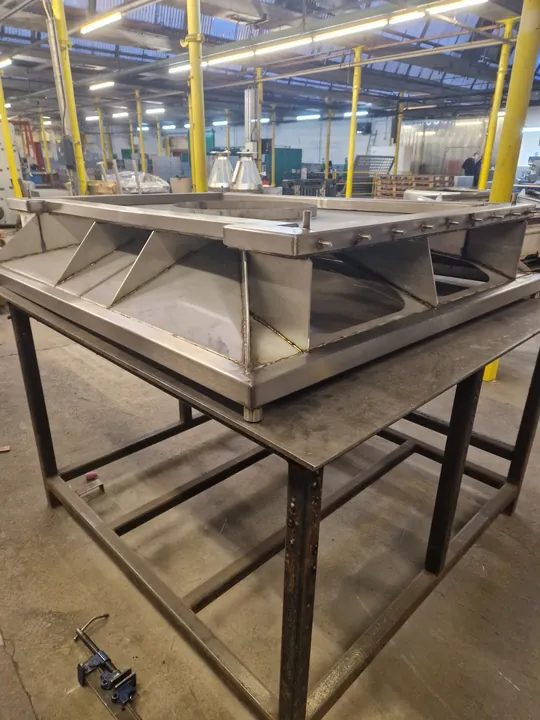

Fabricated Sheet-Metal Assembly
A multi-part fabricated assembly with formed panels, openings and internal details shown from several workshop angles.

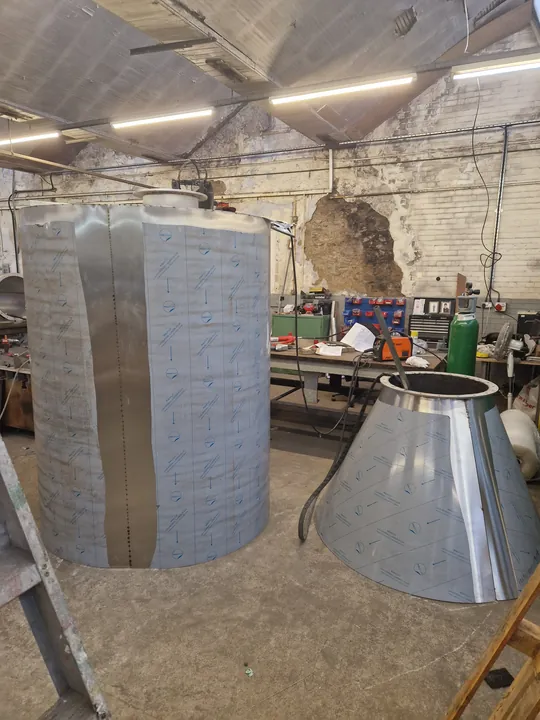

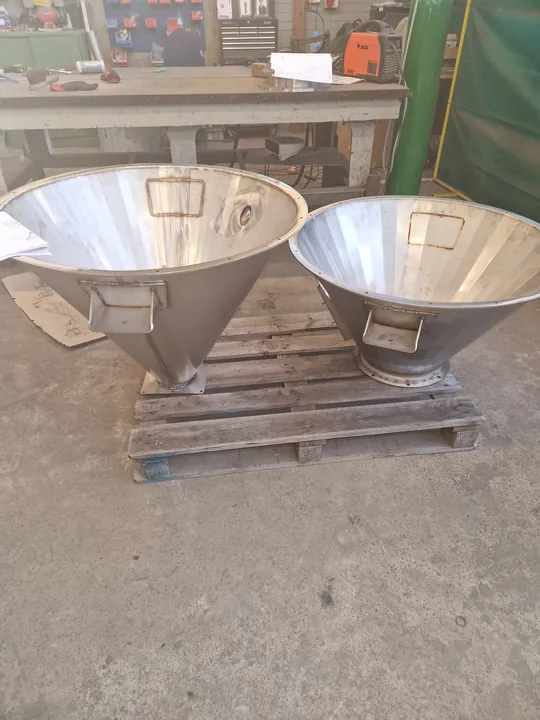

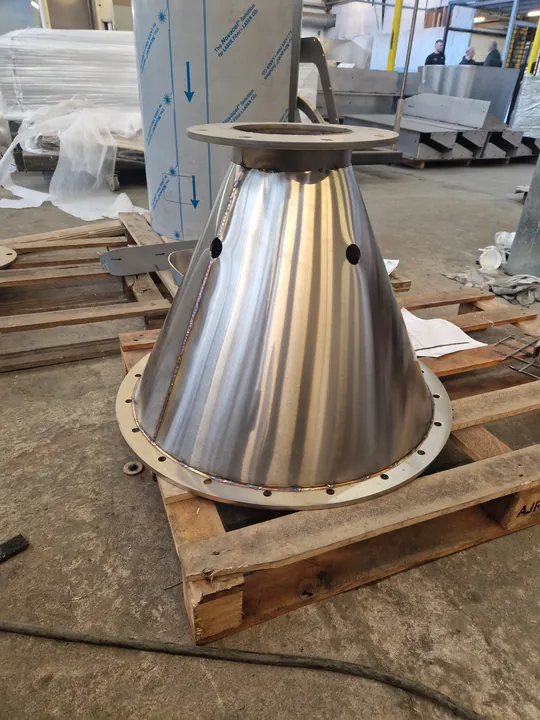

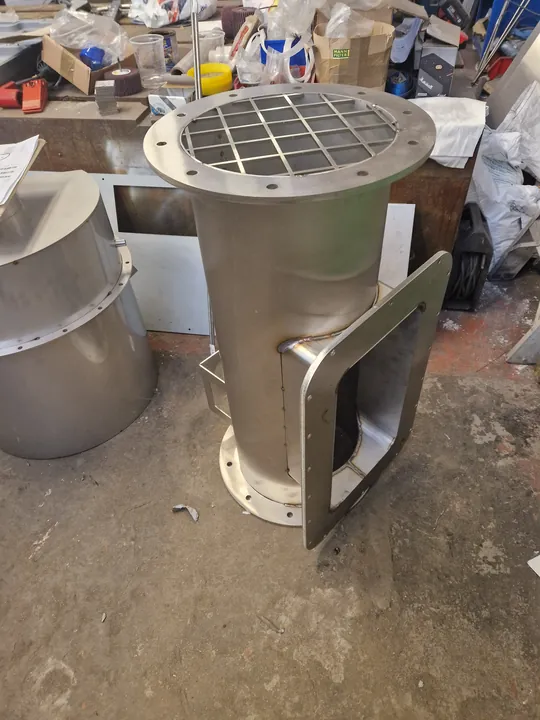

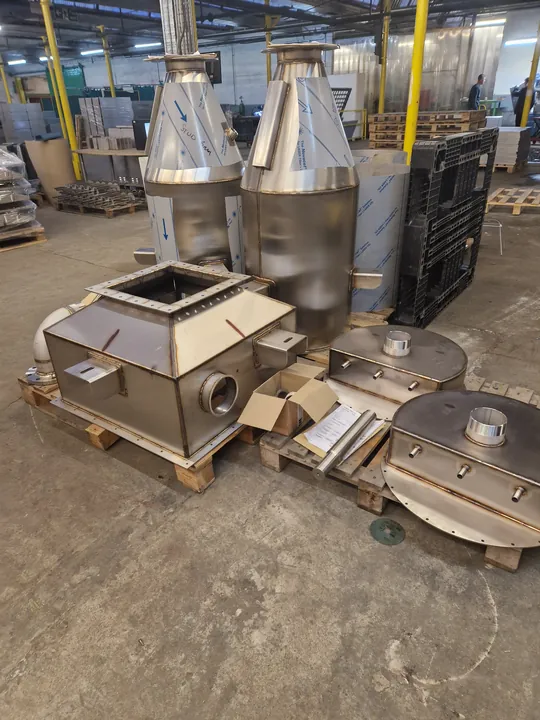

Formed Cones & Transition Pieces
Conical and transition-style components showing the formed shapes that can be incorporated into larger fabrication work.

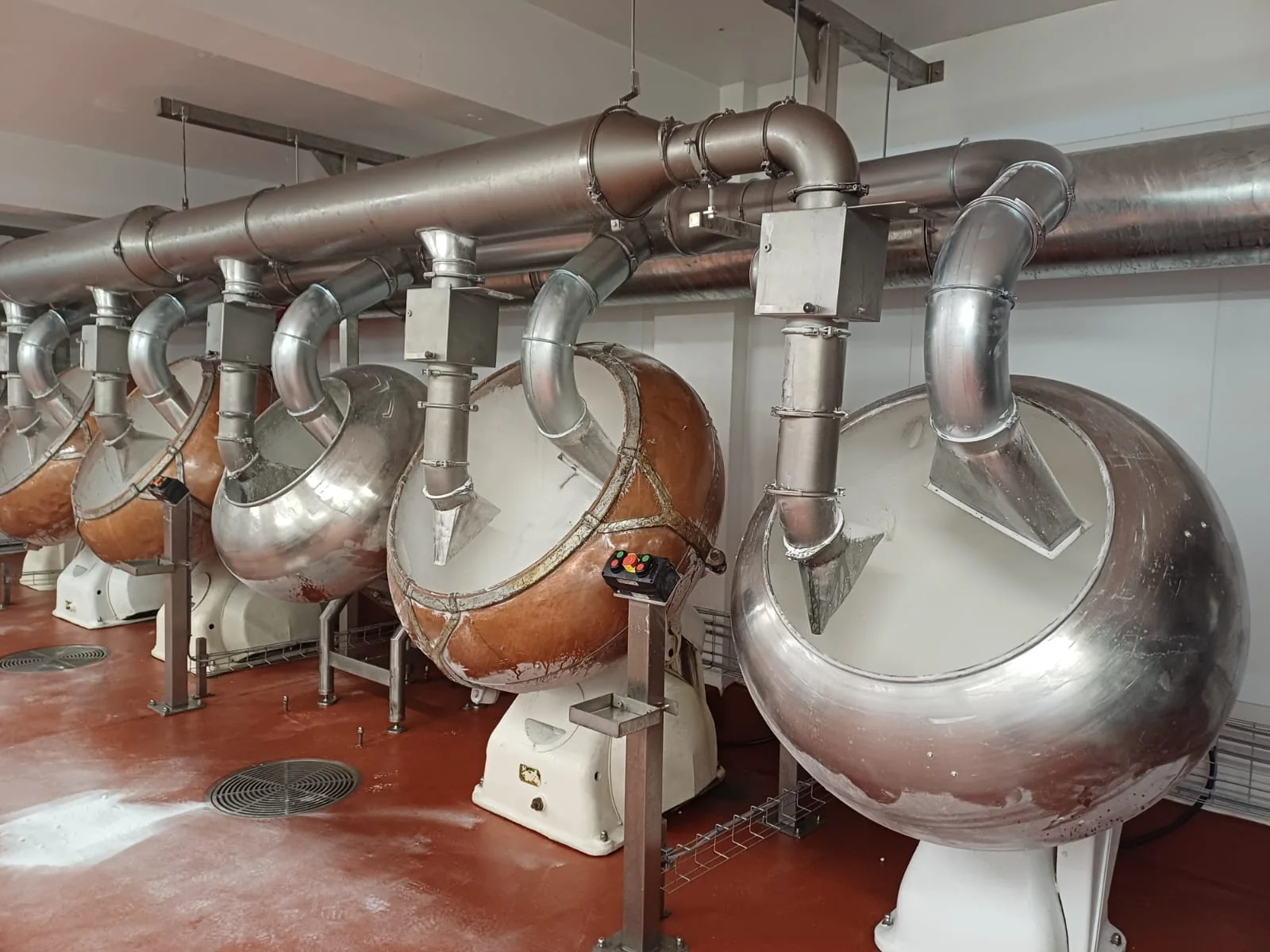

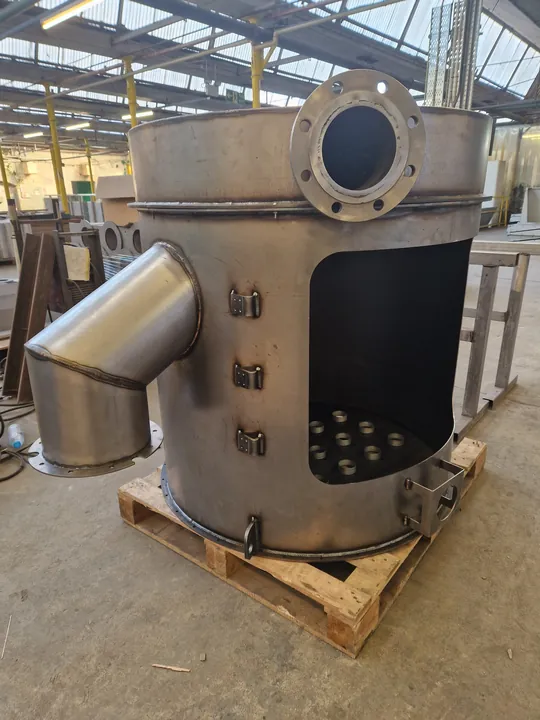

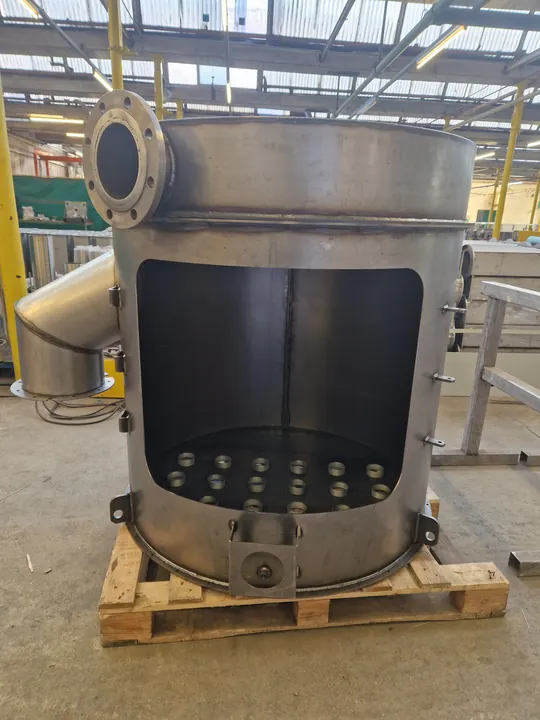

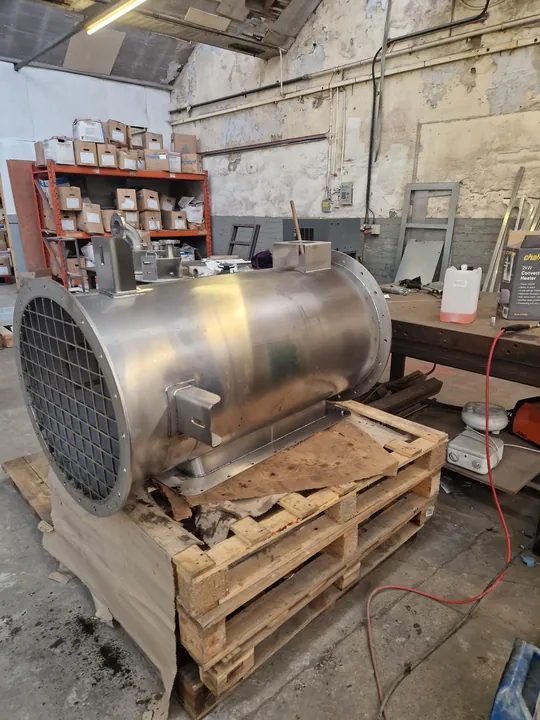

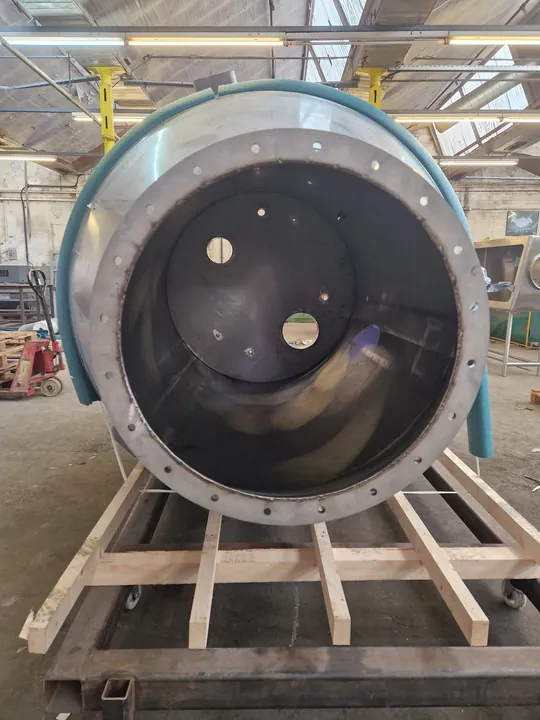

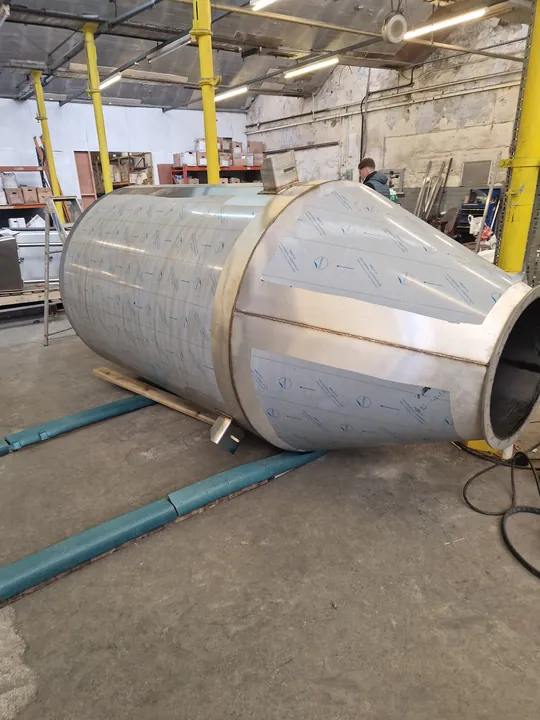

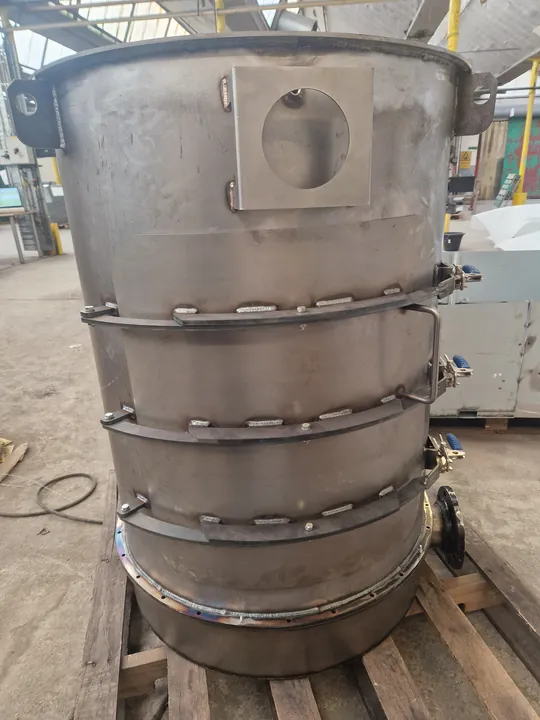

Cylindrical Fabrication & Vessel-Style Assemblies
Larger cylindrical fabricated sections and vessel-style assemblies shown during workshop manufacture.

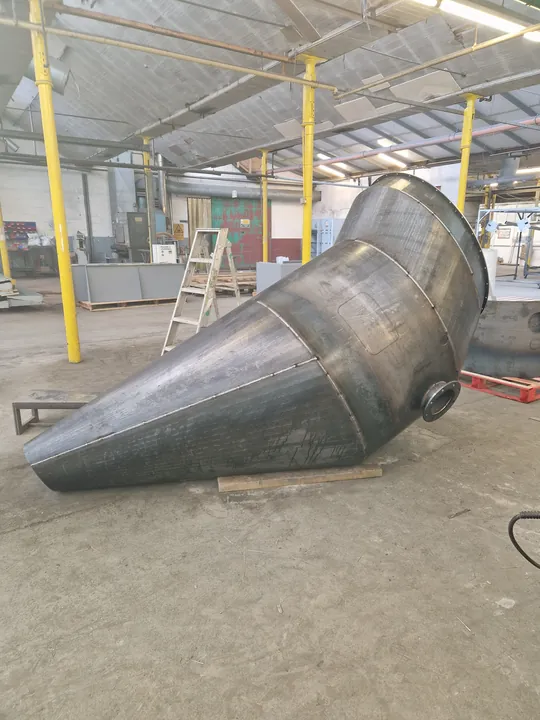

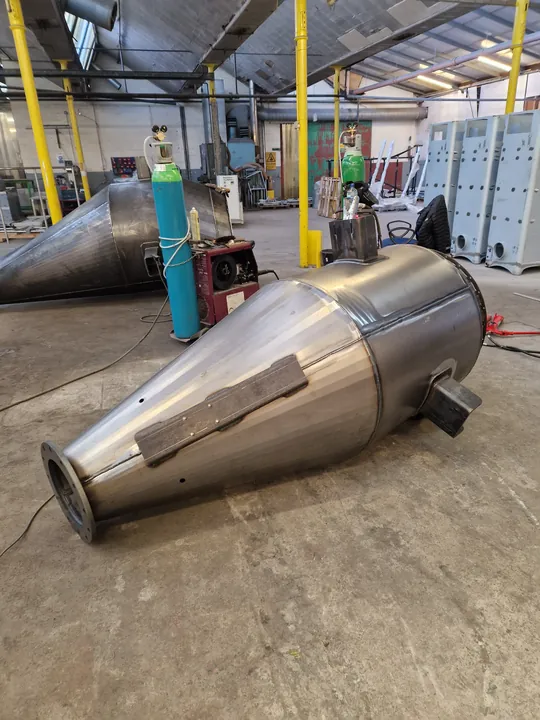

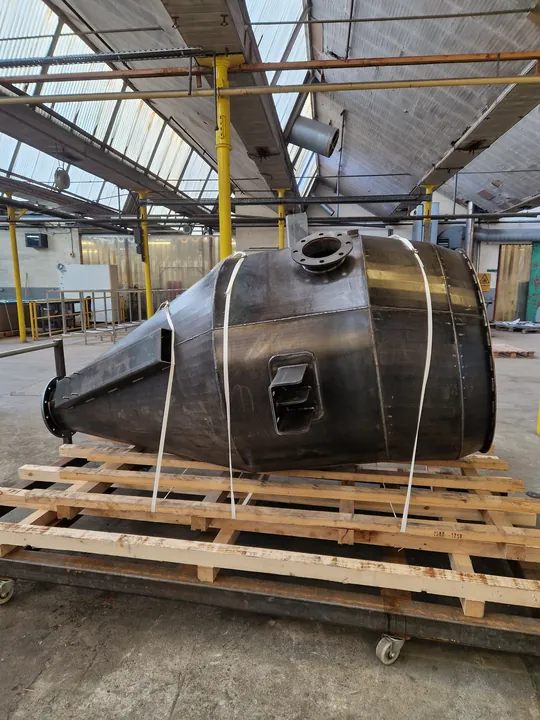

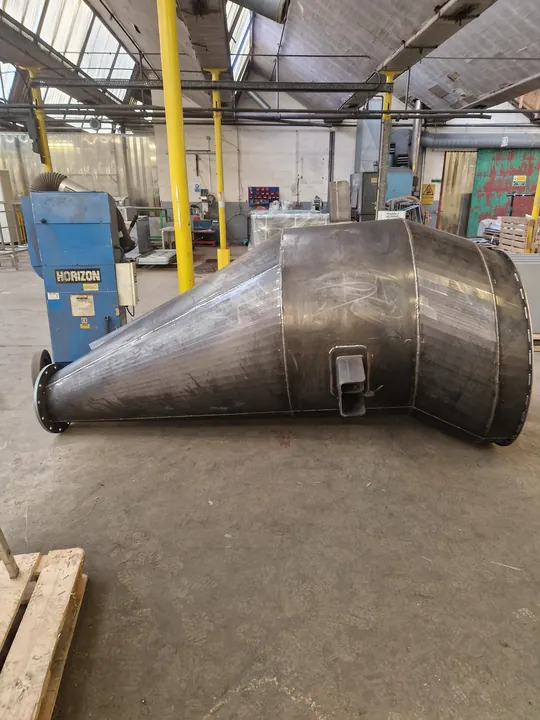

Large Conical Fabrication
A substantial formed cone shown through workshop stages, including the finished conical section.

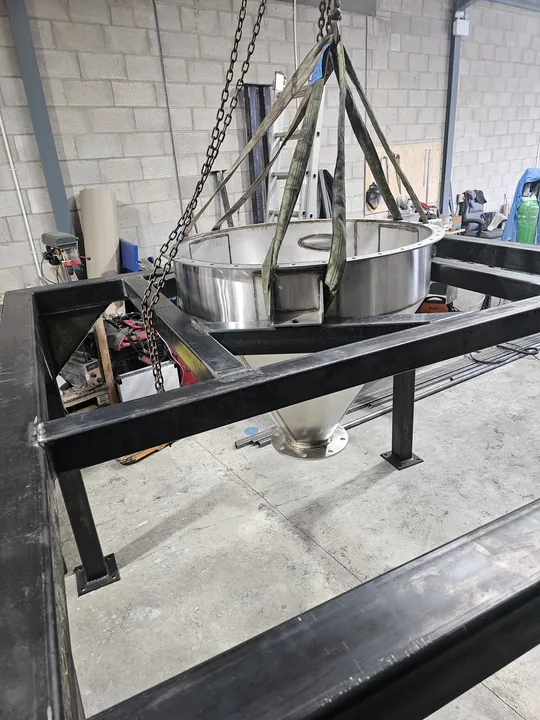

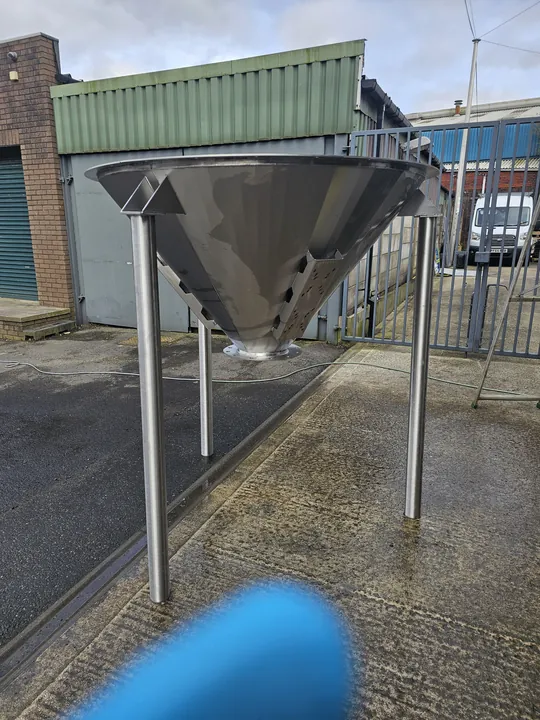

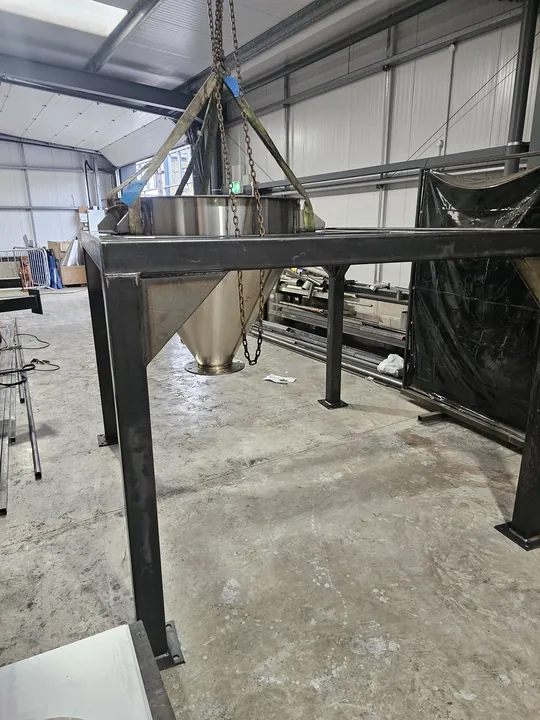

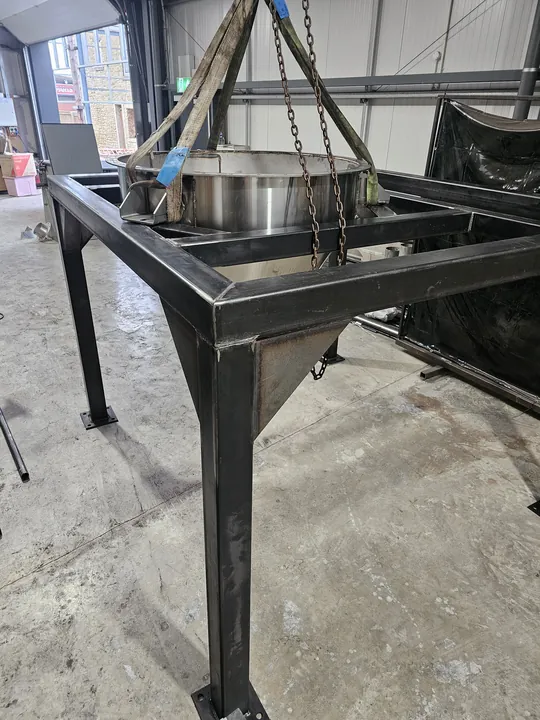

Fabricated Hopper & Support Frame
A large hopper-style assembly shown with its fabricated support frame during handling and positioning.
Seen something close to the part you need?
The project pages show genuine workshop evidence; the commercial pages explain how to specify a new job. Use fabricated hoppers, cones and transitions, fabricated pipework components or cylindrical fabrications, then send the drawing, quantity, material and finish for review.
Explore the fabrication archive.
Click any image to enlarge it. The gallery is curated to show useful angles and different types of genuine Zeus fabrication.
