Where machining fits into fabrication
CNC machining removes material with computer-controlled tools to produce accurately defined features and components. In fabricated work it is often used alongside sheet-metal processes rather than on its own — for example where an assembly needs a machined flange, accurately positioned holes, a turned or milled detail, or a controlled mating face.
If your job combines fabricated and machined parts, send the complete drawing set. Seeing the relationship between the parts makes it easier to understand which dimensions are critical and what the finished assembly must achieve.
Typical machining requirements within an assembly
Machined work can include holes, slots, counterbores, threads, faces, bosses, spacers, flanges and separate components that are later welded, bolted or assembled into fabricated metalwork. The exact process depends on the drawing, geometry, material and quantity.
Where a machined component needs to locate a fabricated section, identify the datum or interface dimensions clearly. Those relationships often matter more than the individual part considered in isolation.
What to send for a machining enquiry
- Dimensioned component drawing
- 3D model where available
- Material and grade
- Quantity
- Threads, fits or critical dimensions
- Surface finish requirements where specified
- The wider assembly drawing if the machined part fits a fabrication
Quote the assembly you actually need
If the job includes laser cutting, bending, welding and machined details, send everything together. Zeus can then quote against the finished requirement and confirm what information is needed for each stage.
If you are replacing an existing machined component and do not have a drawing, photographs and measurements can start the conversation, although a controlled drawing may be required before production for precision features.
See genuine Zeus fabrication

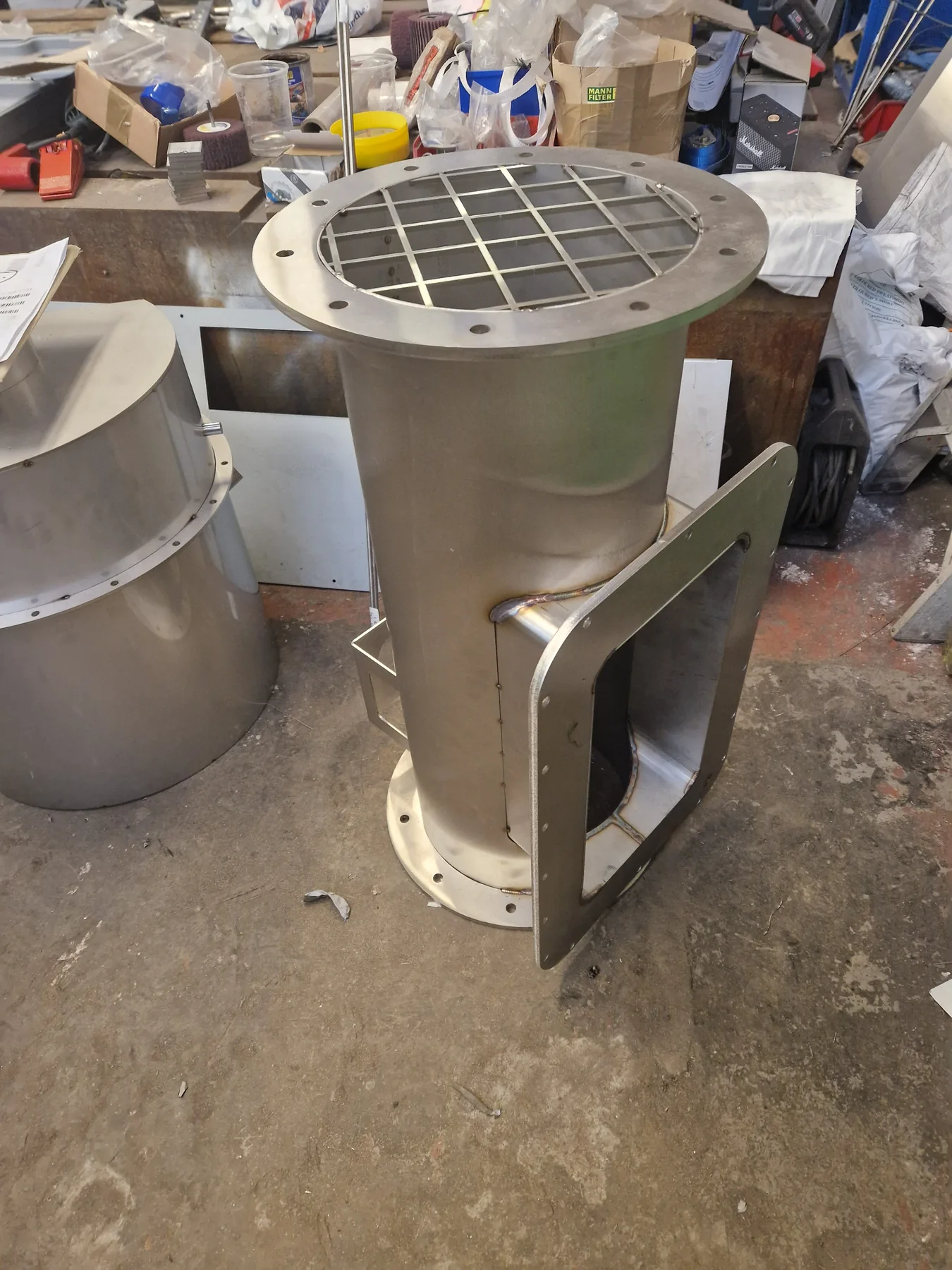

The photographs below show work fabricated by Zeus. They give a practical indication of the type, finish and scale of work customers can discuss when sending a new enquiry.
Frequently asked questions
Can machining be included with a fabricated assembly?
Yes. Send the full drawing set so machined features or components can be considered together with the fabrication.
What files are useful for CNC machining?
A dimensioned drawing is essential for controlled dimensions and notes. A STEP/STP model can also be useful for the component geometry.
Can Zeus quote from an existing machined part?
An existing part, photographs and measurements can start an enquiry. Depending on the component, a production drawing may still be needed before manufacture.
Send the job for a quote
Send your drawing, quantity, material if known, finish requirement and delivery postcode. If you do not have a drawing, attach photographs and describe what you need the component to do.
Send us your drawing
