What CNC bending does
CNC bending, commonly carried out on a press brake, forms flat sheet along programmed bend lines to create angles, channels, trays, boxes and more complex folded parts. It is a key stage in many sheet-metal jobs because accurate bends determine how parts fit together later in the fabrication.
A laser-cut blank might look simple when flat, but bend direction, bend sequence and material behaviour all matter once it is formed. Supplying the finished-part drawing, rather than only the flat profile, gives the clearest picture of what the component needs to become.
Parts that commonly need folding
Typical folded work includes brackets, channels, panels, covers, trays, enclosures, guards, hopper sides and transition pieces. Several folded parts can also be welded together to create a larger assembly.
If a component forms part of an existing machine or installation, identify the surfaces, holes or edges that must line up with other parts. Those interfaces are often more important than an isolated bend dimension.
What affects a bending quote
The material, thickness, overall size, number of bends, bend geometry and quantity all influence how a job is planned. Tight return flanges, closely spaced bends and complex shapes can require a different sequence from a straightforward angle or channel.
There is no need to second-guess tooling when asking for a quote. Send the drawing and Zeus can review the part as a fabrication requirement.
What to send for CNC bending or folding
- Finished component drawing
- Flat DXF if available
- Material and thickness
- Inside bend radius where it is a design requirement
- Bend angles and critical dimensions
- Quantity
- Any welding, assembly or finish needed afterwards
Cut, fold, weld and finish as one job
Many customers do not want loose folded blanks; they need the completed bracket, cover, hopper or assembly. Where appropriate, laser cutting, bending, welding and finishing can be included in the same enquiry so the quote reflects the finished item.
See genuine Zeus fabrication

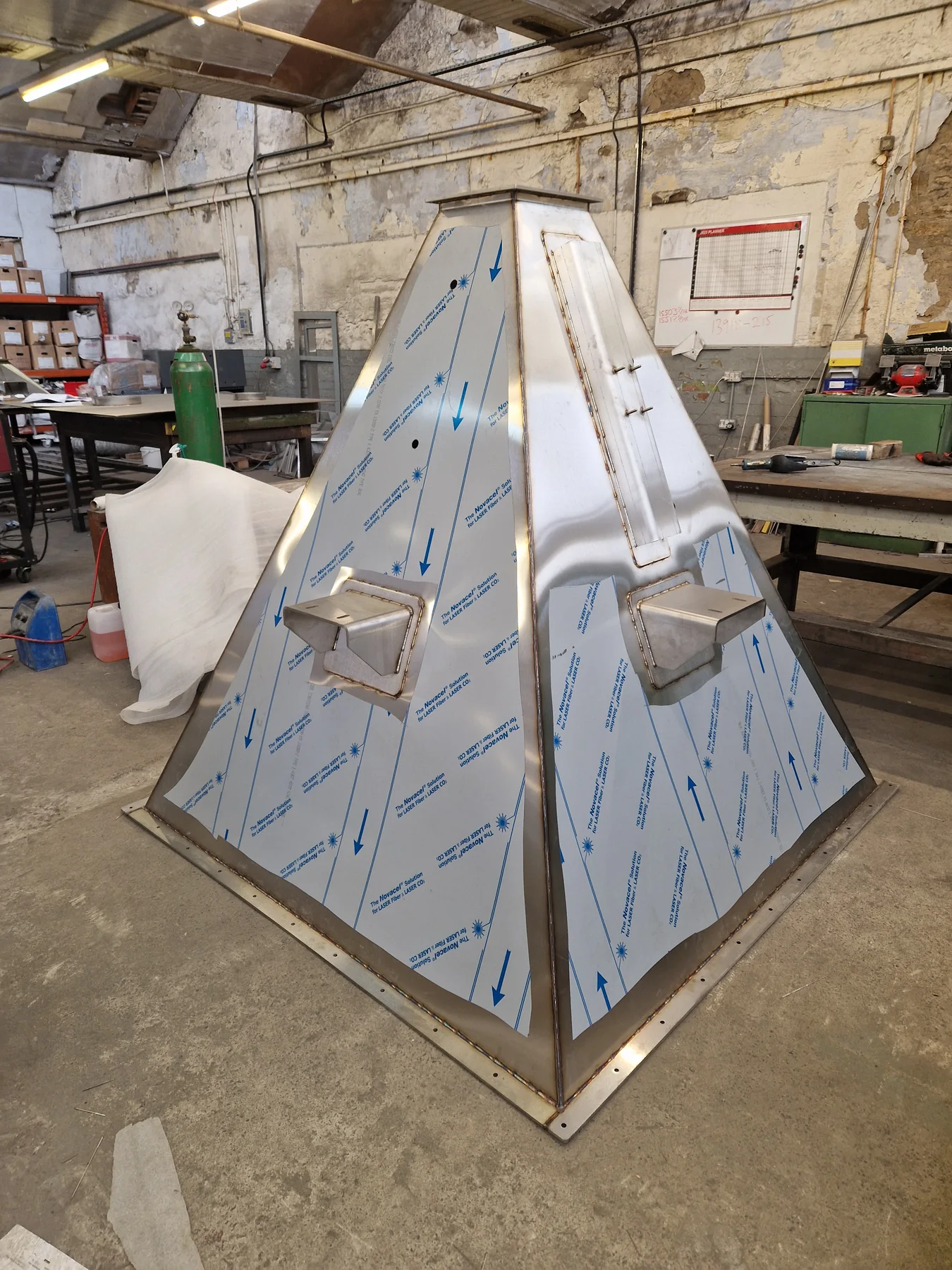

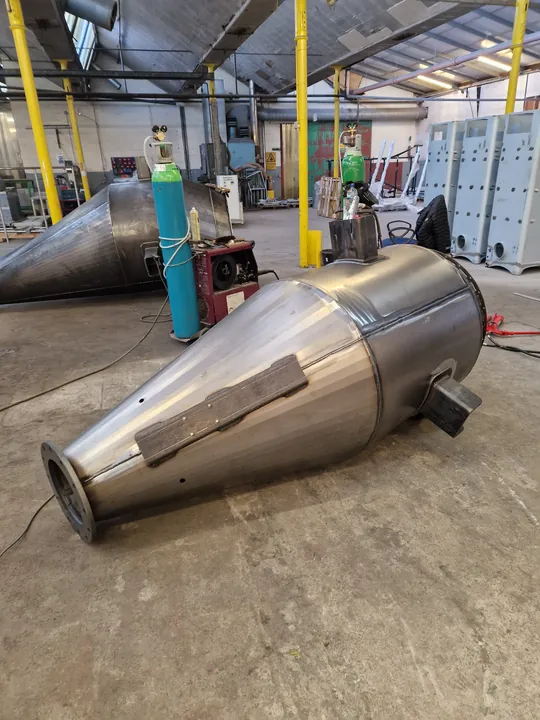

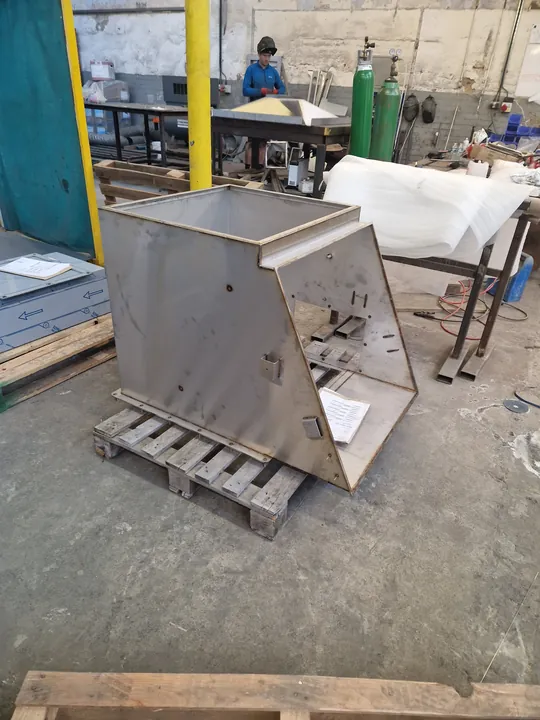

The photographs below show work fabricated by Zeus. They give a practical indication of the type, finish and scale of work customers can discuss when sending a new enquiry.
Frequently asked questions
What drawing is best for sheet metal folding?
A finished-part drawing showing bend angles, dimensions, material and thickness is the most useful. A flat DXF can also help where it is available.
Can Zeus quote folded parts that also need welding?
Yes. Include the whole assembly so the formed parts and welding can be considered together.
What if I only have an existing folded part?
Send clear photographs and dimensions, and explain what the part fits. An existing sample can also be useful where a replacement is required.
Send the job for a quote
Send your drawing, quantity, material if known, finish requirement and delivery postcode. If you do not have a drawing, attach photographs and describe what you need the component to do.
Send us your drawing
