Fabricated Sheet-Metal Assembly

A genuine Zeus fabrication shown through several workshop stages, from the earlier open body through to later assembled views with formed openings, internal details and joined sheet-metal sections.

Real Zeus workMulti-stage photographyFabricated assembly
Overall workshop view of the fabricated sheet-metal assembly

What the photographs establish

This is one of the clearest examples in the Zeus archive because the same fabrication is shown from several angles and at more than one stage. The photographs let a buyer see the build-up of the body, the relationship between formed panels and large openings, and the later assembled form rather than relying on a single finished photograph.

  • An earlier workshop stage showing the open fabricated body, large formed openings and joined sheet-metal sections.
  • Later overall, front and side views showing how the separate fabricated sections come together as one assembly.
  • Interior views showing circular openings, folded edges and the relationship between internal and external features.
Evidence boundary: The photographs prove the fabricated form and workshop progression. They do not establish the original drawing dimensions, material grade, sheet thickness, tolerance or end-use, so none of those details are inferred here.

Workshop views

The captions below describe only what is visible in the genuine Zeus photographs. Click an image to enlarge it.

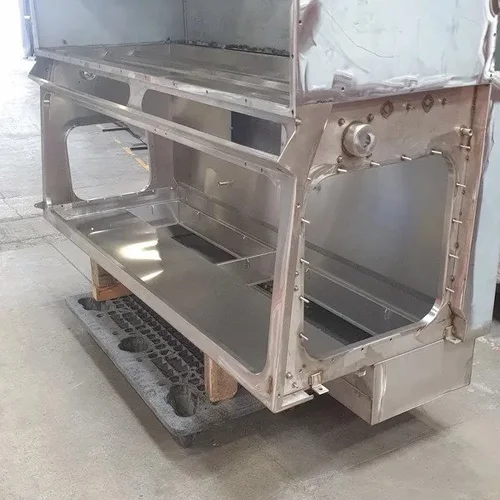

Earlier build stage showing the open body, large formed openings and joined sheet-metal sections before later assembly details.
Overall view showing the scale and multi-part form of the completed workshop assembly.
Side view showing formed outer panels, openings and the relationship between upper and lower sections.
Front workshop view showing the fabricated frame, large radiused openings and joined panel work.
Close workshop view of the internal fabricated details and circular openings.
Interior view showing the formed sheet, openings and joined construction from inside the assembly.

What to send for a comparable requirement

For a comparable assembly, send the complete drawing rather than isolated part sketches where possible. Include the overall dimensions, material and thickness, quantity, finish, important interfaces and any dimensions or tolerances that are genuinely critical to fit or function. If the item replaces existing equipment, photographs of the mating parts are useful too.

  • Drawing or CAD file where available
  • Material and grade if specified
  • Thickness and principal dimensions
  • Quantity and required finish
  • Critical interfaces, fit requirements or standards that genuinely apply
  • Required date and delivery postcode/location

Related Zeus capability

The most relevant starting point is sheet-metal fabrication. Depending on the drawing, a similar job may also involve CNC bending and folding, TIG welding or stainless polishing and finishing. Those links describe available Zeus capabilities; they are not a claim that every process was used on the photographed job.

These photographs are examples of bespoke work, not a catalogue of the only items Zeus can fabricate. If your part is different, send the complete requirement for review.
