Cylindrical Fabrication & Vessel-Style Assemblies

Genuine workshop photographs showing larger cylindrical fabricated forms with openings, end details, external features and connected fabricated sections.

Real Zeus workCylindrical fabricationNo pressure-rating claim
Overall view of a large cylindrical fabricated assembly

What the photographs establish

These photographs show substantial cylindrical and vessel-style forms during workshop manufacture. They are useful evidence of curved and cylindrical fabrication because several views show the body, openings, end faces and external details rather than only one angle.

  • Large cylindrical bodies with circular openings and fabricated external details visible.
  • End-on and rear views showing how openings, end sections and the main cylindrical body relate to one another.
  • Additional vessel-style and stacked cylindrical forms showing variation in geometry across the Zeus archive.
Evidence boundary: “Vessel-style” describes the visible geometry only. These photographs do not prove a pressure rating, design code, hygienic standard, inspection regime, material grade, thickness or certification. Any such requirement must be stated before quotation.

Workshop views

The captions below describe only what is visible in the genuine Zeus photographs. Click an image to enlarge it.

Overall workshop view showing a substantial cylindrical fabricated body and attached formed features.
Rear workshop view showing the cylindrical body, end section and fabricated connection details.
End-on view showing circular openings and fabricated details around the face of the cylindrical section.

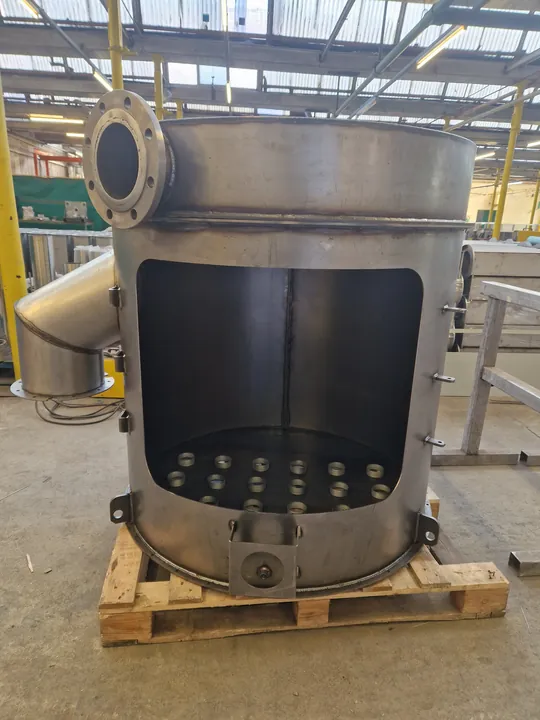

Front workshop view of a vessel-style fabrication with a large opening and external fabricated details.
Angled workshop view showing the cylindrical body and a formed outlet attached to the side.
Another cylindrical fabrication showing joined sections and external circumferential details.

What to send for a comparable requirement

For a comparable cylindrical fabrication, send the complete drawing with diameters, lengths, end forms, openings, branches or bosses, supports, material and thickness, quantity, finish and all important interfaces. If pressure, hygiene, inspection, coded welding or another standard applies, state it explicitly so Zeus can confirm suitability before any quote is treated as valid.

  • Drawing or CAD file where available
  • Material and grade if specified
  • Thickness and principal dimensions
  • Quantity and required finish
  • Critical interfaces, fit requirements or standards that genuinely apply
  • Required date and delivery postcode/location

Related Zeus capability

For new enquiries, start with cylindrical sheet-metal fabrications. Depending on the specification, related capabilities include sheet-metal fabrication, TIG welding and stainless polishing and finishing.

These photographs are examples of bespoke work, not a catalogue of the only items Zeus can fabricate. If your part is different, send the complete requirement for review.
