Large Conical Fabrication

A genuine Zeus workshop sequence showing a substantial conical fabrication through several stages and angles, including the raw formed body and later finished views.

Real Zeus workWorkshop progressionLarge formed section

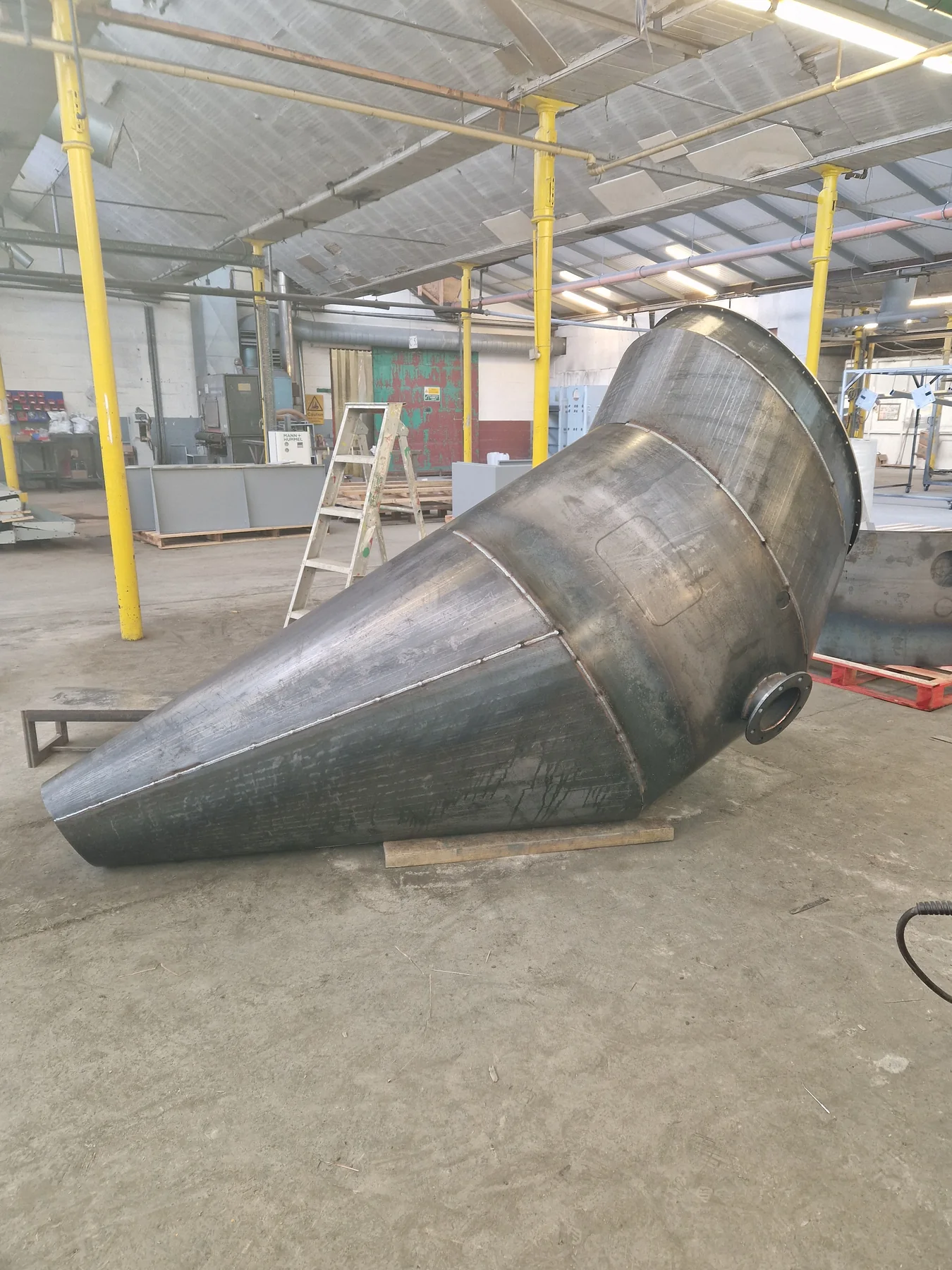

Raw workshop stage of a large conical fabrication

What the photographs establish

This is particularly useful project evidence because the same large conical form appears in more than one workshop stage. The sequence shows the geometry before later finishing and gives a clearer sense of the size and fabrication challenge than a single polished photograph would.

  • The raw conical body showing the formed geometry before later workshop finishing.
  • Side and pallet views showing the length, taper and cylindrical connection section from different angles.
  • A later finished view showing the completed external appearance of the same type of large conical fabrication.
Evidence boundary: The photographs establish the fabricated shape, scale and visible workshop progression. They do not establish the original material specification, thickness, dimensions, tolerance, application or inspection requirement.

Workshop views

The captions below describe only what is visible in the genuine Zeus photographs. Click an image to enlarge it.

Raw formed stage showing the full taper and cylindrical connection before later finishing.
Side view showing the long taper, joined body and outlet geometry.
Another workshop angle showing the scale and overall proportions of the conical section.
Later view showing the external finish and completed conical form.

What to send for a comparable requirement

For a similar cone or reducer, include the principal diameters, overall length or height, any offset, material and thickness, connection details, quantity, seam or weld requirements, finish and required date. If the cone is part of a larger assembly, the full assembly drawing helps prevent interfaces being treated in isolation.

  • Drawing or CAD file where available
  • Material and grade if specified
  • Thickness and principal dimensions
  • Quantity and required finish
  • Critical interfaces, fit requirements or standards that genuinely apply
  • Required date and delivery postcode/location

Related Zeus capability

For new work, use the cones and transition pieces page. Related Zeus capability includes sheet-metal fabrication, TIG welding and stainless polishing and finishing where specified.

These photographs are examples of bespoke work, not a catalogue of the only items Zeus can fabricate. If your part is different, send the complete requirement for review.
